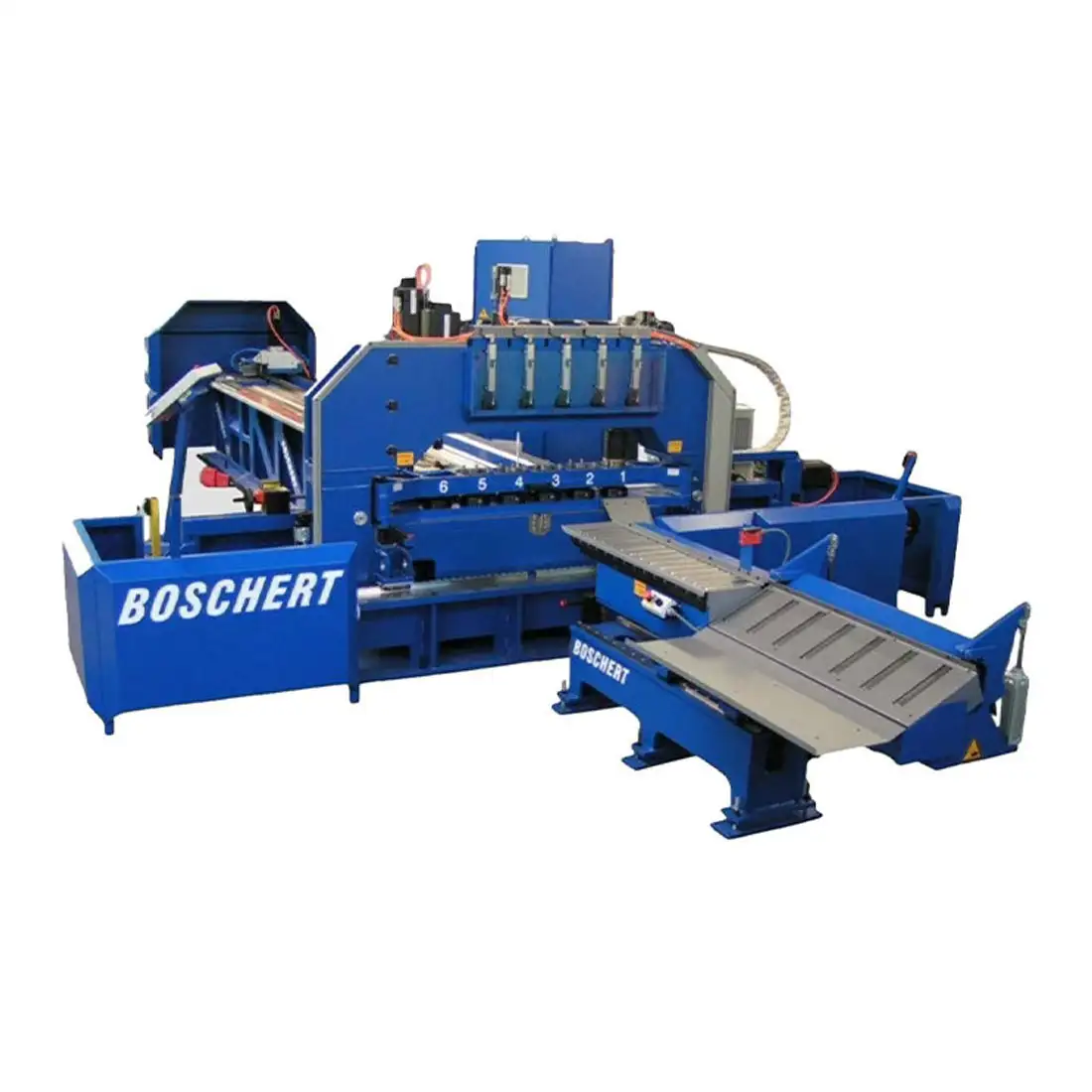

The machine is made for efficient punching of copper bars and is equipped with:

• CNC controlled punching machine with 5-head tooling system AMADA (station D)
• Processing Capacity: Punching of copper bars up to 6 m long and widths from 20 mm up to 200 mm
• Feeding System: Features 3 clamps ensuring complete processing with minimum waste, supported by a fast rack and pinion drive with an AC servomotor guaranteeing a repetition accuracy of ±0.05 mm
• Hydraulic Material Clamping: Y-axis clamping prior to punching ensures processing without bending finished parts
• Unloading system
• User-friendly graphic software
• Automatic waste removal
• Front table support

Possible equipment at the CU WK II:

• 5 x Amada – Adaptation size D
• 5 x Adapter size for die D to D
• 2 of 5 heads prepared for Multitool for Amada-type tools: 4-way (2x size A, 2x size B) or 6-way (6x size A)
• CNC/CAD software to import DXF files
• Extra head with screwing and drilling attachment (type “Suhner”)
