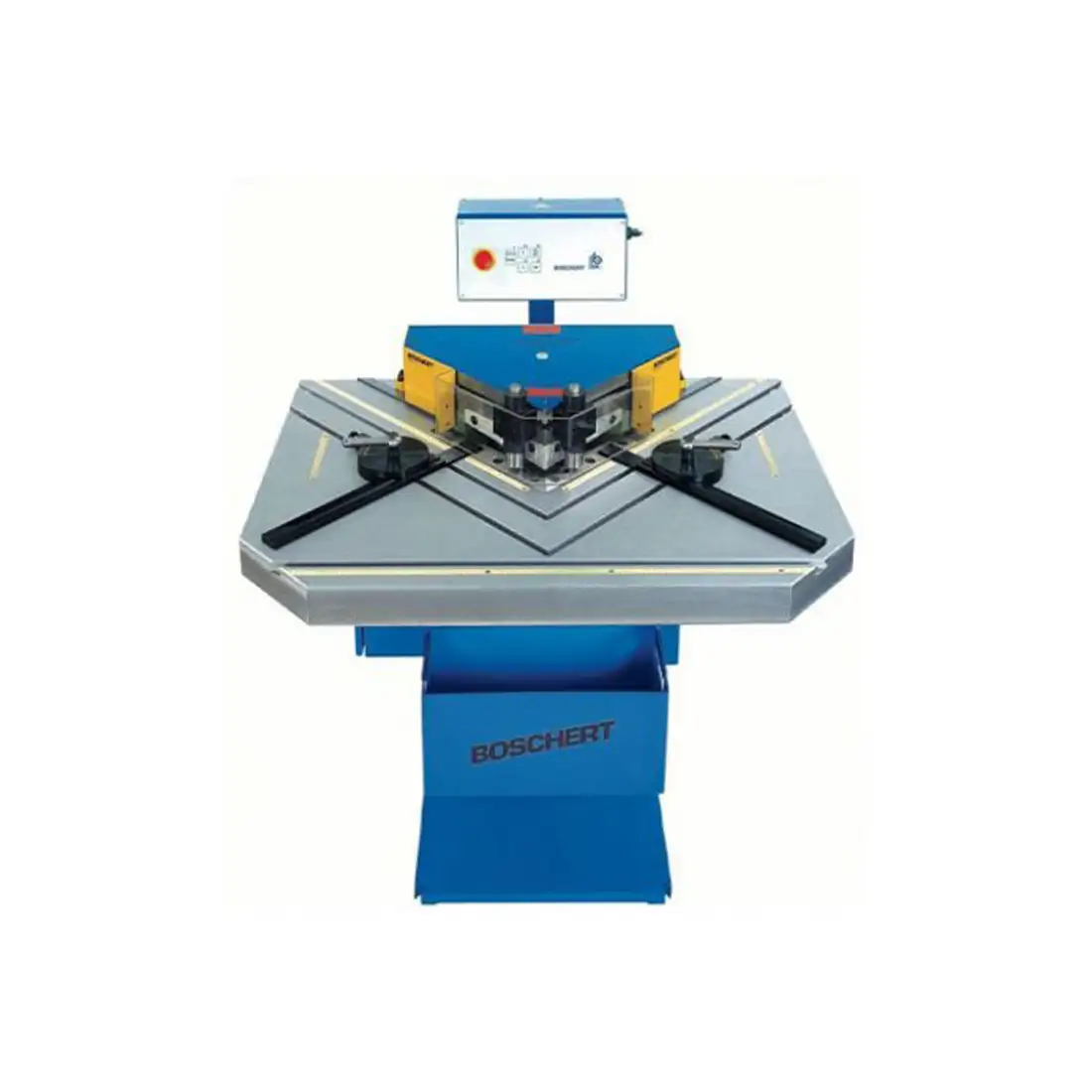

Hydraulic 2-station machine for notching and coping. The LB 13 KE distinguishes itself from the basic model by incorporating a second work station.

Station 1:
Notching with a fixed angle of 90° (features as per LB 13 Standard).

Station 2:
Coping to a depth of 100 mm and 25 mm wide (width resetting as desired). Capacity for St 40: up to 4 mm thick; special steel: up to 3 mm thick.

Standard equipment includes:

• Locking precision stop with stop rails
• Stripper and stripe cutter
• Device for notching amplifications greater than 225 mm
• Freely movable foot pedal for triggering the stroke
• Two holding-down clamps for sheet metal
• Plexiglass guard for safe notching with full operational visibility

In addition to steel and stainless steel, Boschert notching machines can also cut plastic and grid materials.
